Polypropylene Expandable Braided Sleeving

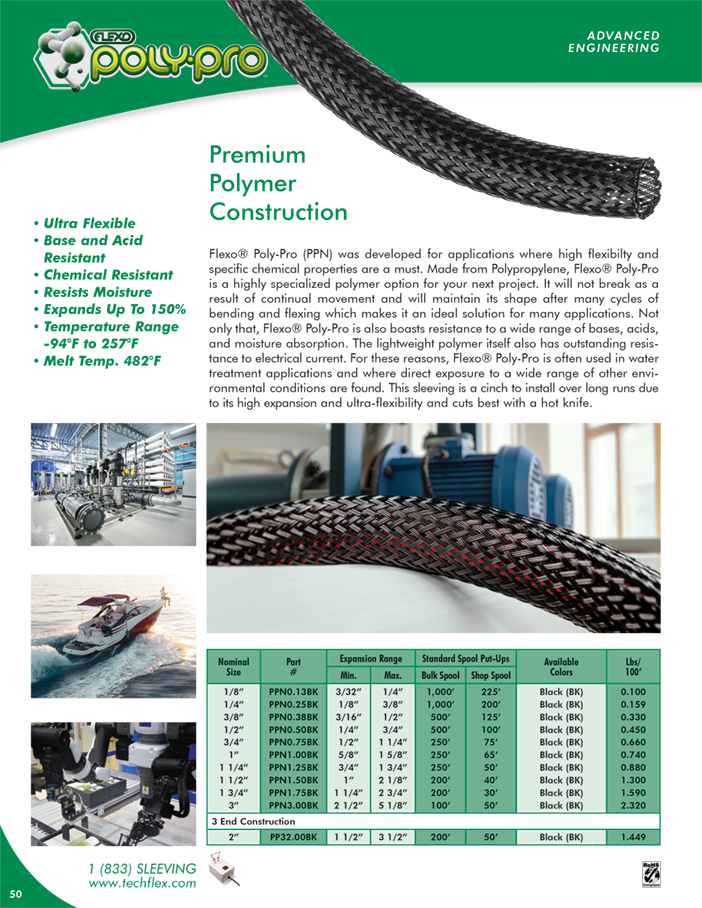

Flexo® Poly-Pro (PPN) was developed for applications where high flexibility and specific chemical properties are a must. Made from Polypropylene, Flexo® Poly-Pro is a highly specialized polymer option for your next project. It will not break as a result of continual movement and will maintain its shape after many cycles of bending and flexing which makes it an ideal solution for many applications. Not only that, Flexo® Poly-Pro is also boasts resistance to a wide range of bases, acids, and moisture absorption. The lightweight polymer itself also has outstanding resistance to electrical current. For these reasons, Flexo® Poly-Pro is often used in water treatment applications and where direct exposure to a wide range of other environmental conditions are found. This sleeving is a cinch to install over long runs due to its high expansion and ultra-flexibility and cuts best with a hot knife.
Certifications:
Prod Size
| Size | Part Number | Expansion Max | Expansion Min | Putup One | Putup Two | Lbs Per Hundred Feet" data-metric="Kgs Per Hundred Meters"> Kgs Per Hundred Meters |
|---|---|---|---|---|---|---|
| 254/5mm | pp32.00bk | 9.52mm | 6.35mm | 200' | 50' | 1.68 |
| 3.18mm | ppn0.13bk | 6.35mm | 2.38mm | 1000' | 225' | 0.3 |
| 6.35mm | ppn0.25bk | 11.11mm | 3.18mm | 1000' | 200' | 0.45 |
| 9.52mm | ppn0.38bk | 12.7mm | 4.76mm | 500' | 125' | 0.85 |
| 12.7mm | ppn0.50bk | 19.05mm | 6.35mm | 500' | 100' | 1.15 |
| 19.05mm | ppn0.75bk | 6.35mm | 12.7mm | 250' | 75' | 1.79 |
| 127/5mm | ppn1.00bk | 3.18mm | 15.88mm | 250' | 65' | 1.99 |
| 6.35mm | ppn1.25bk | 6.35mm | 19.05mm | 250' | 50' | 2.38 |
| 12.7mm | ppn1.50bk | 6.35mm | 127/5mm | 200' | 40' | 2.92 |
| 6.35mm | ppn1.75bk | 12.7mm | 6.35mm | 200' | 30' | 3.65 |
| 381/5mm | ppn3.00bk | 127/5mm | 127/5mm | 100' | 50' | 5.95 |
